Bosch vehicle motion and position sensor help autonomous vehicles with precise locations

Bosch has developed a sensor that allows automated vehicles to precisely determine their position: the vehicle motion and position sensor. This new sensor includes a high-performance receiver unit for global navigation satellite system (GNSS) signals, which an automated vehicle needs to determine its absolute position.

Automated driving is about more than just sensors, control units, and lots of computing power. It also requires a host of smart services, without which no vehicle will ever be able to drive autonomously.

“Services are at least as important for automated driving as the hardware and software,” says the Bosch board of management member Dr. Dirk Hoheisel. “We must pursue all three paths simultaneously to get self-driving cars safely and reliably onto our roads.”

Like barely any other global supplier of technology and services in the automotive industry, Bosch devotes significant effort into achieving a breakthrough in automated driving. In these efforts, it is creating integrated solutions. One area that demonstrates this is the safety-critical topic of localisation. Self-driving vehicles can drive safely only if they know down to the nearest centimetre exactly where they are at any given time. To achieve this, Bosch offers a globally unrivaled localisation package. Taken together, its hardware, software, and services serve as a redundant system for precisely determining the vehicle's position.

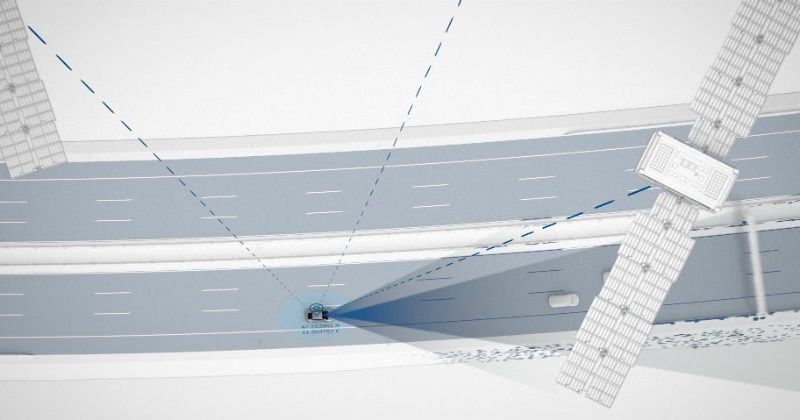

The challenge with satellite-based positioning lies in dealing with inaccuracies in the data. GNSS satellites orbit the earth at a distance of 25,000 kilometres and at speeds of 4,000 metres per second. As their signals make their way to the ground, they must pass through the ionosphere and layers of cloud in the troposphere, which disperse the signals and introduce errors. While the signals are still accurate enough for today's navigation systems, they do not meet the needs of automated driving.

This is why Bosch makes use of correction data supplied by various providers, and why it set up the Sapcorda joint venture in 2017. With the help of a network of terrestrial reference stations whose positions are precisely known, these providers can correct for the inaccuracy of GNSS positioning information. The correction data reaches the car via a cloud or geostationary satellites.

GNSS signals are not the only information the vehicle motion and position sensor receives: thanks to wheel-speed and steering-angle sensors, which are akin to the human sense of touch, it knows where the car is headed and how fast. The vehicle motion and position sensor features integrated inertial sensors - comparable to the inner ear in humans. Just as people can move around with the help of their senses of touch and balance, so the sensor can use this data to tell where the vehicle is going.

For precise positioning, the data needs to be processed using intelligent software. Only then can an automated vehicle reliably know exactly where it is within an area stretching several meters around it and calculate its driving maneuvers accordingly.

An automated vehicle is localised primarily on the basis of the corrected GNSS signals. If the satellite connection is lost, for instance when the vehicle enters a tunnel, the vehicle motion and position sensor can continue to determine the vehicle's position for several seconds. This involves calculating the vehicle's position relative to the last known point for which absolute positioning information is available.

If the GNSS signal is interrupted for a longer period and it is no longer possible for the vehicle motion and position sensor to determine the vehicle's position, the automated vehicle can refer to the Bosch road signature for localisation information.

The Bosch road signature is a map-based localisation service based on the surround sensors in the vehicles of today and tomorrow. Bosch offers the service alongside its vehicle motion and position sensor-based localization solution. Bosch meets high safety requirements by combining the satellite- and vehicle motion and position sensor-based approach with the road signature's map-based localisation service.

Video and radar sensors on board vehicles in motion generate the Bosch road signature by detecting stationary features on and by the road, such as lane markings, traffic signs, and guardrails. In this regard, radar sensors have a major advantage, since, unlike cameras, they can detect road features in the dark or when visibility is poor. Their detection range is also greater.

A communication module in the car sends data relating to features on and by the road to the cloud. There, the features are used to generate an independent map level, which in turn forms part of a highly accurate map.

For their part, automated vehicles detect the road features around them and consult the map to see whether the traffic signs or guardrails they have recognised match those recorded there. This comparison enables the cars to accurately determine their position in the lane - relative to the highly accurate map - down to the nearest centimetre.
